| Lumimax Part Number | Quadrant | IT(RMS)(A) | VDRM/VRRM(V) | IGT [I-III](mA) | IGT [IV](mA) | VTM at 25°C(V) | TJ Max.(°C) | Package | |
|---|---|---|---|---|---|---|---|---|---|

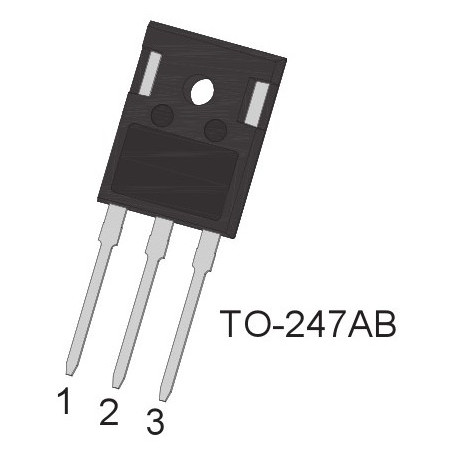

 | T4050-12P | 3 | 40 | 1200 | 50 | 1.55 | 150 | TO-247AB | |
| T4050-12ZI | 3 | 40 | 1200 | 50 | 1.55 | 150 | TO-3P(Ins) | |
| T4050-16P | 3 | 40 | 1600 | 50 | 1.55 | 150 | TO-247AB | |
| T4050-16ZI | 3 | 40 | 1600 | 50 | 1.55 | 150 | TO-3P(Ins) | |
| T4050-800P | 3 | 40 | 800 | 50 | 1.55 | 150 | TO-247AB | |
| T4050-800ZI | 3 | 40 | 800 | 50 | 1.55 | 150 | TO-3P(Ins) |
